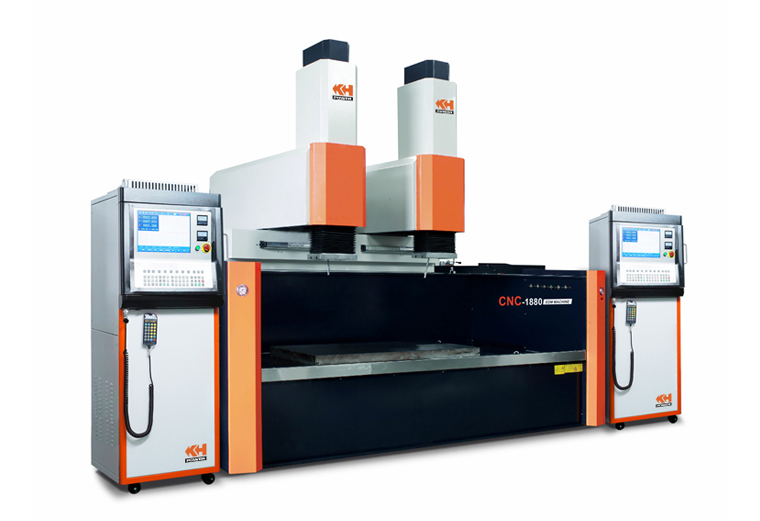

Double OX-Head

Specification

ITEM UNIT CNC1470 Single/Double CNC1880 Single/Double CNC2110 Single/Double CNC2510 Double CNC3110 Double
Work Table Size(LxW) mm 1500×900 2000×1000 2500×1200 2700×1200 3200×1200
Coordinate Axes Travel x axis mm Single:1400
Double:850
Single:1800
Double:1200
Single:2300
Double:1450
Double:1750 Double:2400
Y axis mm 700 800 900 900 900
Z axis mm 500 600 600 600 600
Work Table Intemal Size(LxWxH) mm 2550×1300× 700 3000×1500×850 3500×1800×850 3800×1800×850 4500×1800× 800
Max.electrode Weight kg 400 400 450 450 450
Max Loading Of Worktable kg 5000 6500 8000 10000 15000
Distrance From Electrode
Plate To Work Table
Max mm 1200 1200 1250 1250 1300
Min mm 700 600 650 650 700
Oil Tank Capacityy L 1500×2=3000 2000×2=4000 2000×2=4000 2500×2=5000 3000×2=6000
Machine Weight kg Single: 9000
Double: 11000
Single: 13000
Double: 15000
Single: 15000
Double: 17000
Double: 17000 Double: 25000
Control Axes Number Three axes three linkage

Feature

  • Micro pulse control, which is suitable for ultra fine mirror processing;
    Automatic points functions
    Tool setting acceleration function,increase efficiency of tool setting points function;
    High voltage power amplifier circuit to improve the efficiency of graphite processing.
