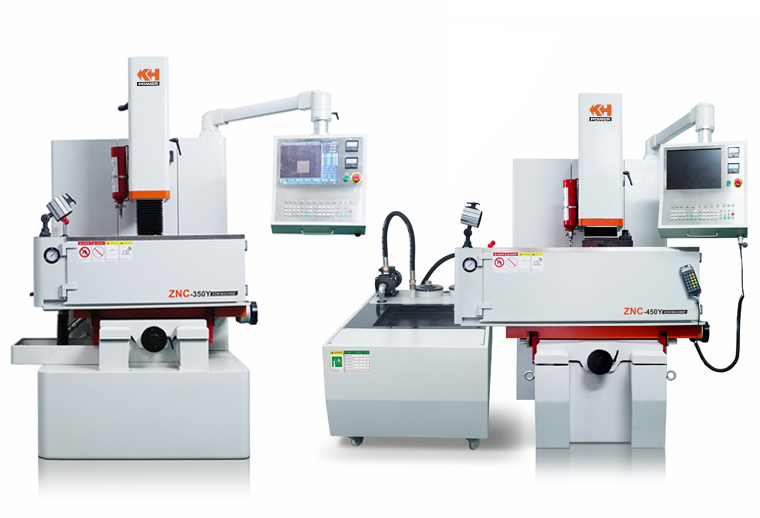

ITEM		UNIT	ZNC320Y	ZNC350Y	ZNC450Y	ZNC540Y
Work Table Size(LxW)		mm	500x300	630x350	700x450	800x500
Coordinate Axes Travel	x axis	mm	300	350	450	500
	Y axis	mm	200	250	350	400
	Z axis	mm	200	200+200	250+250	250+250
Work Table Intemal Size(LxWxH)		mm	785x540x320	875x540x380	1205x600x450	1255x685x480
Max.electrode Weight		kg	50	75	75	100
Max Loading Of Worktable		kg	450	500	700	1000
Distrance From Electrode Plate To Work Table	Max	mm	560	650	700	760
Distrance From Electrode Plate To Work Table	Min	mm	360	250	200	260
Z axis Two-direction positioning accuracy A		L	0.009/300mm	0.009/300mm	0.009/300mm	0.009/300mm
Z axis one-direction re-positioning accuracy R+ and R-		kg	0.004/300mm	0.004/300mm	0.004/300mm	0.004/300mm
Z axis of the reverse difference (loss of momentum) B		mm	0.006/300mm	0.006/300mm	0.006/300mm	0.006/300mm
Oil Tank Capacity		L	400	450	500	550
Machine Weight		kg	1200	1300	1600	1900
External Dimension(LxWxH)		mm	1575x1180x2320	1605x1265x2500	1920x1580x2380	2070x1635x2450
